Heat Pump for Cooling & Heating

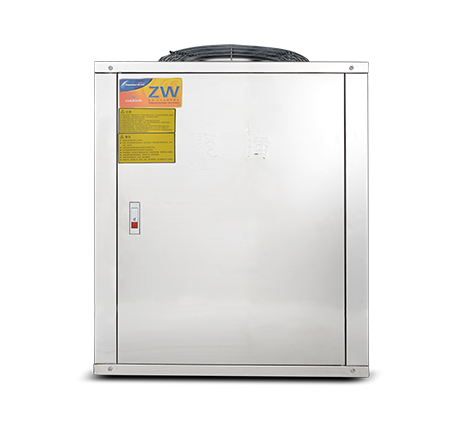

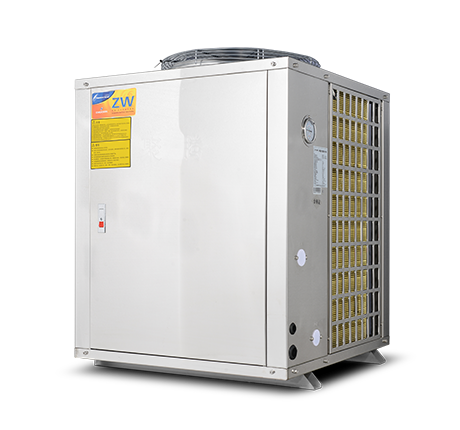

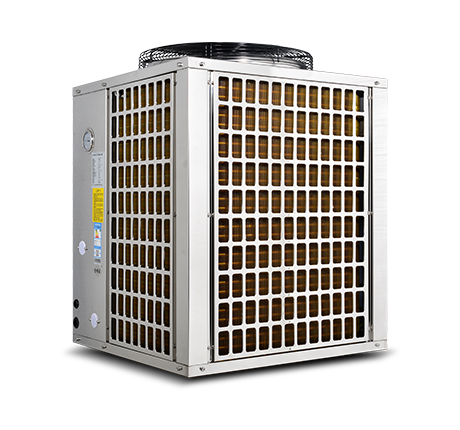

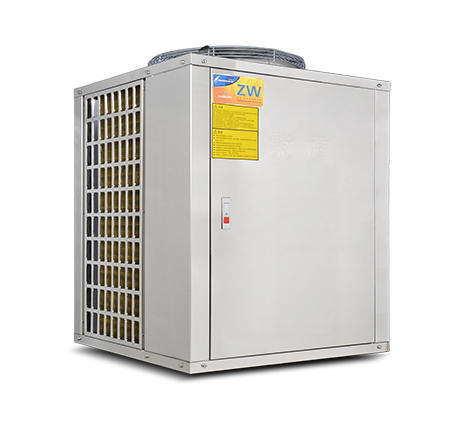

Low Temp Heating+Cooling Heat Pump-Vertical Fan-5HP
Air to water heat pump absorbs the heat from the air, the compressor makes the refrigerant into high-temperature and high-pressure gas. The refrigerant heats the cold water through the heat exchanger. After the heat is released, the refrigerant continues to return to the compressor and absorbs the heat from the air. The cycle is repeated so as to produce hot water again.
ProductSpecifications
  • Heating Capacity (KW)

  • 22.0

  • Refrigerant

  • R410a

  • Compressor

  • Copeland

  • Rated Input Power (KW)

  • 4.60

  • Charge(kg)

  • 3.5

  • Condenser

  • Titanium Tube Heat-Exchanger

  • Rated Input Current (A)

  • 9.5

  • Heating

  • Cycle

  • Evaporator

  • Aluminum Finned Evaporator

  • COP(W/W)

  • 4.78

  • Water Flow (L/H)

  • 380

  • Water Flow (L/H)

  • 2-φ7

  • Power Supply (KW)

  • 380V/3N/50Hz

  • Power Supply (KW)

  • 4000

  • Throttle Device Type

  • EEV

  • Max Input Power (KW)

  • 5.6

  • Inlet Water Connection(mm)

  • PVC Tube DN50

  • Fan Position

  • Vertical

  • Max Input Current (A)

  • 12.5

  • Outlet Water Connection(mm)

  • PVC Tube DN50

  • Water Rated Pressure(MPa)

  • 0.55

  • Noise(dB)

  • ≤60

  • Power Cord

  • 3x6.0mm2+2x4.0mm2

  • Water Pressure Loss(kPa)

  • 60

  • Working Temperature(℃)

  • -10~43

  • Water Pump:Stroke-Flow

  • 10m-6m3/h

  • Size(mm)

  • 717x717x950

  • Rated Outlet Water Temperature(℃)

  • 28

  • Operation

  • Wire Controller

  • Unit Weight(kg)

  • 105

  • Max Outlet Water Temperature(℃)

  • 43

Remark:In compliance with Air Source Heat Pump for Swimming Pool Industrial Standard with JB/T 11969-2014 (Air Source Heat Pump for Swimming Pool)
Super-1 efficiencyEvery shower saves money
  • High-Efficiency Compressor for Heat Pump
    Heat pump compressor has max working life 20 years, effective operation and is good at High temperature & high pressure resistance
  • Electric Expansion Valve
    EEV has high accuracy in control of gas flow & evaporation, to improve the effectiveness
  • R410a Eco-friendly gas
    Take Eco-friendly gas R410a,to get higher heat-exchange efficiency
Multi SilenceGood Sleep
Mult-silence technology, including smart inverter fan, sound-deafening compressor, flow pipe optimation, vibration-reduction device, lowers the noise to 45(dB) for comfortable life
  • Smart Inverter Fan Motor
    Intelligent Noise-Reduction
  • Compressor with Sound-Deafening
    Good Effect of soundproof by sound-deafening
  •   Harder Sound-Absorbing Cotton
      Stereo Absorbing Sound
  • Multi Vibration-Reduction Tech
      Lower Vibration Noise
Advantages
Stainless Steel/Titanium material is without rust, has long working life and reliable quality
  • High-Efficiency Energy Saves up to 75%
    To consume 1unit electricity, Heat pump produces 4units heating, 75% energy-saving by electric water heater
  • Safe & Eco-Friendly, Protect Your Family
    There is no pollution to release, best choice for hot water
  • Central Hot Water System with Constant Temperature
    It offers you 5 stars enjoyment of hot water by constant-temperature and efficient hot water
  • 24hours Hot Water Supply
      No worry to hot water supply if air exits, even if it has less solar in rainy day
